EUP3411 Datasheet, Converter, Eutech Microelectronics

EUP3411 Features

• Converter z 30V Input Surge Protection z Up to 2A Output Current z 0.17 Internal DMOS Output Switch z 4.5V to 16V Input Operating Range z Output Adjustable from 1.2V to 12V z Up to 95% Efficiency

PDF File Details

Part number:

EUP3411

Manufacturer:

Eutech Microelectronics

File Size:

953.97kb

Download:

📄 Datasheet

Description:

380khz step-down converter. The EUP3410/3411 is a current mode, step-down switching regulator capable of driving 2A continuous load with excellent line and load

EUP3411 Application

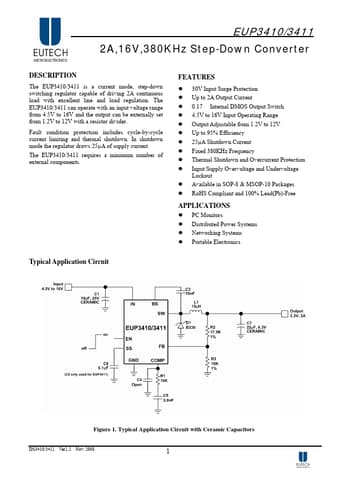

• Applications z PC Monitors z Distributed Power Systems z Networking Systems z Portable Electronics Typical Application Circuit Figure 1. Typical A
