EUP3425

Synchronous Step-Down Converter

Eutech Microelectronics

EUP3425 Features

* short circuit and thermal protection circuits to increase system reliability. Externally adjustable soft-start SS pin allows for proper power on sequencing with respect to other power supllies and avoids input inrush current during startup. The EUP3425 is available in a low profile 14pin 3mm × 4mm T

EUP3425 General Description

The EUP3425 is a 1MHz fixed frequency synchronous, current-mode, step-down dc-dc converter capable of providing up to 5A output current. The EUP3425 operates from an input range of 2.7V to 5.5V and provides a regulated output voltage from 0.8V to 5V. The internal synchronous power switch increases e.

EUP3425 Datasheet (790.64 KB)

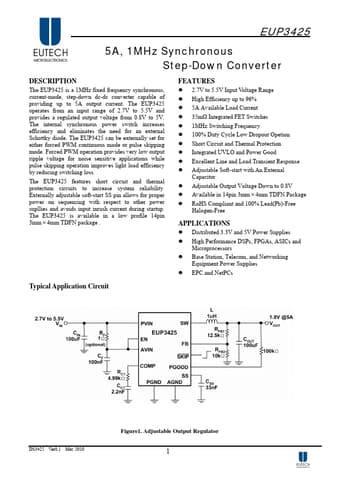

EUP3425 Datasheet Preview — Preview of EUP3425 PDF

Datasheet Details

Part number:

EUP3425

Manufacturer:

Eutech Microelectronics

File Size:

790.64 KB

Description:

Synchronous step-down converter.
