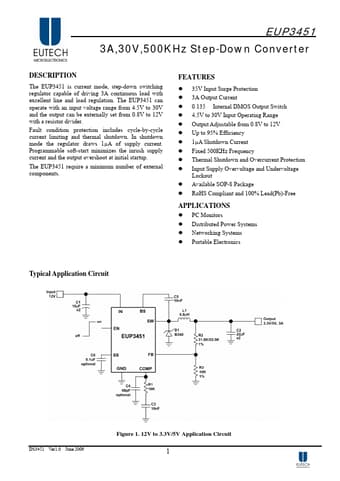

EUP3451 Datasheet, converter equivalent, Eutech Microelectronics

EUP3451 Features

• Converter z 35V Input Surge Protection z 3A Output Current z 0.135 Internal DMOS Output Switch z 4.5V to 30V Input Operating Range z Output Adjustable from 0.8V to 12V z Up to 95% Efficiency z 1µ

PDF File Details

Part number:

EUP3451

Manufacturer:

Eutech Microelectronics

File Size:

653.34kb

Download:

📄 Datasheet

Description:

500khz step-down converter. The EUP3451 is current mode, step-down switching regulator capable of driving 3A continuous load with excellent line and load regulat

EUP3451 Application

• Applications z PC Monitors z Distributed Power Systems z Networking Systems z Portable Electronics Typical Application Circuit DS3451 Ver1.0 June
