EUP3458 Datasheet, converter equivalent, Eutech Microelectronics

EUP3458 Features

  • Converter 1.2A Output Current 0.3Ω Internal DMOS Output Switch 4.5V to 30V Input Operating Range Output Adjustable from 0.8V to 15V Up to 92% Efficiency 1µA Shutdown Current Fixed 1.2MHz Frequenc

PDF File Details

Part number:

EUP3458

Manufacturer:

Eutech Microelectronics

File Size:

774.23kb

Download:

📄 Datasheet

Description:

1.2mhz step-down converter. The EUP3458 is current mode, step-down switching regulator capable of driving 1.2A continuous load with excellent line and load regul

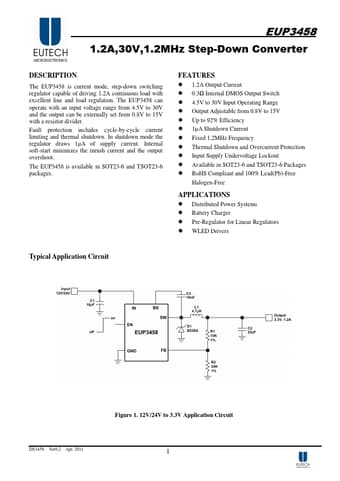

Datasheet Preview: EUP3458 📥 Download PDF (774.23kb)
Page 2 of EUP3458 Page 3 of EUP3458

EUP3458 Application

  • Applications Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators WLED Drivers Typical Application Circuit Vm Ry w‘ fo

TAGS

EUP3458
1.2MHz
Step-Down
Converter
Eutech Microelectronics
