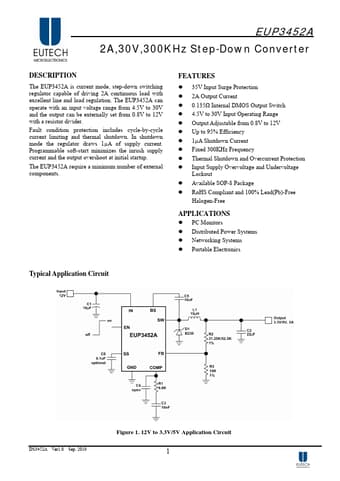

EUP3452A Datasheet, converter equivalent, Eutech Microelectronics

EUP3452A Features

• Converter z 35V Input Surge Protection z 2A Output Current z 0.135Ω Internal DMOS Output Switch z 4.5V to 30V Input Operating Range z Output Adjustable from 0.8V to 12V z Up to 95% Efficiency z 1

PDF File Details

Part number:

EUP3452A

Manufacturer:

Eutech Microelectronics

File Size:

827.32kb

Download:

📄 Datasheet

Description:

300khz step-down converter. The EUP3452A is current mode, step-down switching regulator capable of driving 2A continuous load with excellent line and load regula

EUP3452A Application

• Applications z PC Monitors z Distributed Power Systems z Networking Systems z Portable Electronics Typical Application Circuit DS3452A Ver1.0 Sep.
