EUP8075 USB-Compliant Li-Ion Battery Charger Integrated

EUP8075 Description

EUP8075 USB-Compliant Li-Ion Battery Charger Integrated with System Power-Path Management .
The EUP8075 series of devices are highly integrated Li-ion linear chargers and system power path management devices targeted at space-limited portable.

EUP8075 Features

* z z Integrated Power-Path Management Feature Simultaneously and Independently Powers the System and Charges the Battery Integrated USB Charge Control with Selectable 100mA and 500mA Maximum Input Current Ensures Compliance to USB-IF Standard Supports Up to 1.4 Amps Charge Current 24V Input Rating Th

EUP8075 Applications

* The devices operate from either a USB port or AC adapter. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters. The EUP8075 offer DC supply power-path management with autonomous power-source selection, power FETs and current sensors, high-accuracy cu

📥 Download Datasheet

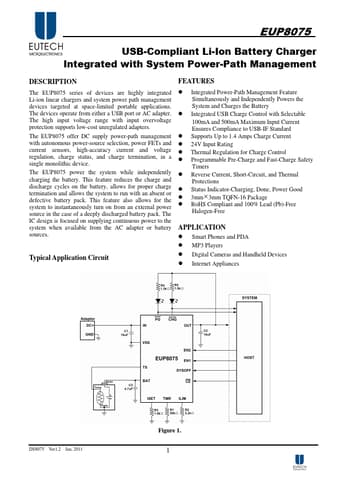

Preview of EUP8075 PDF

Datasheet Details

Part number
EUP8075
Manufacturer
Eutech Microelectronics
File Size
99.26 KB
Datasheet
EUP8075-EutechMicroelectronics.pdf
Description
USB-Compliant Li-Ion Battery Charger Integrated
