EL3022 Datasheet, coupler equivalent, Everlight Electronics

EL3022 Features

• Coupler
• Peak breakdown voltage - 250V: EL301X - 400V: EL302X - 600V: EL305X
• High isolation voltage between input and output (Viso=5000 V rms )
• Compact dual-in-lin

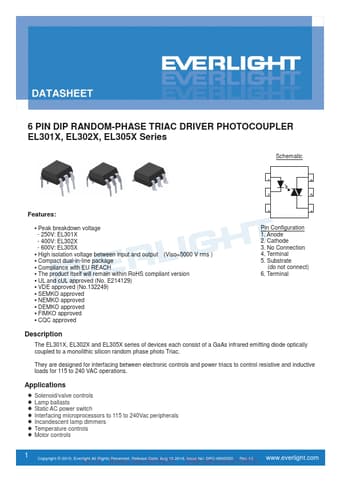

PDF File Details

Part number:

EL3022

Manufacturer:

Everlight Electronics

File Size:

1.63MB

Download:

📄 Datasheet

Description:

6pin dip random-phase triac driver photo coupler. The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic sili

EL3022 Application

• Applications
• Solenoid/valve controls
• Lamp ballasts
• Static AC power switch
• Interfacing microprocessors to 115
