IRM-2633-E

Infrared Remote-control Receiver

IRM-2633-E Features

* :

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Improved shielding against electrical field disturbance

* TTL and CMOS compatibility

* Output active low

* Low power consumption

* Improved immunity agains

IRM-2633-E General Description

‧The device is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can dir.

IRM-2633-E Datasheet (247.55 KB)

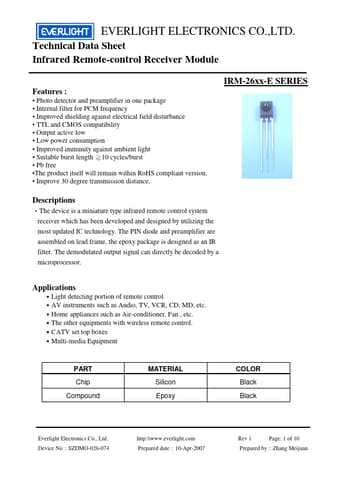

Preview of IRM-2633-E PDF

Datasheet Details

Part number:

IRM-2633-E

Manufacturer:

Everlight Electronics

File Size:

247.55 KB

Description:

Infrared remote-control receiver.
