IRM-2633A

Infrared Remote-control Receiver

IRM-2633A Features

* :

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Improved shielding against electrical field disturbance

* TTL and CMOS compatibility

* Output active low

* Low power consumption

* Improved immunity agains

IRM-2633A General Description

‧The IRM-26xxA SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-26xxA SERIES is the standard IR re.

IRM-2633A Datasheet (231.02 KB)

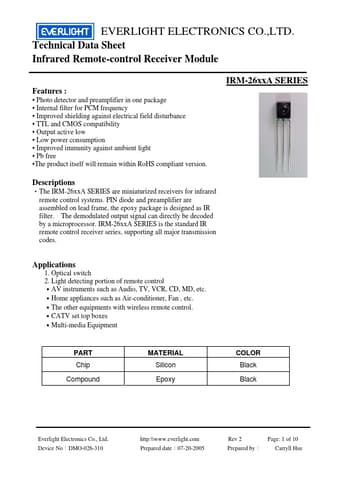

Preview of IRM-2633A PDF

Datasheet Details

Part number:

IRM-2633A

Manufacturer:

Everlight Electronics

File Size:

231.02 KB

Description:

Infrared remote-control receiver.
