IRM-2633V

Infrared Remote-control Receiver

IRM-2633V Features

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Improved shielding against electrical field disturbance

* TTL and CMOS compatibility

* Output active low

* Low power consumption

* Improved immunity against

IRM-2633V General Description

‧The IRM-26XXV SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-26XXV SERIES is the standard IR re.

IRM-2633V Datasheet (287.55 KB)

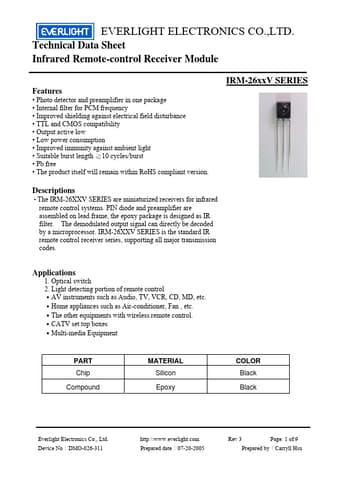

Preview of IRM-2633V PDF

Datasheet Details

Part number:

IRM-2633V

Manufacturer:

Everlight Electronics

File Size:

287.55 KB

Description:

Infrared remote-control receiver.
