IRM-2633VF4 Infrared Remote-control Receiver

‧The IRM-26XXVF4 SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-26xxVF4 SERIES is the standard I.

IRM-2633VF4 Features

* Photo detector and preamplifier in one package

* Internal filter for PCM frequency

* Improved shielding against electrical field disturbance

* TTL and CMOS compatibility

* Output active low

* Low power consumption

* Improved immunity against

IRM-2633VF4-EverlightElectronics.pdf

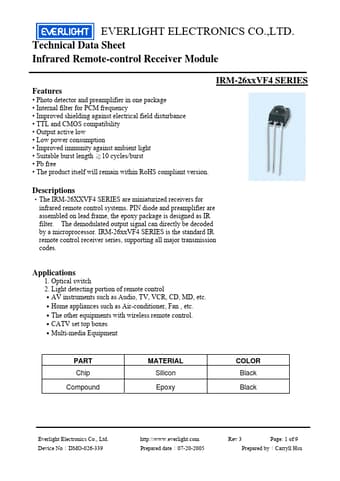

IRM-2633VF4 Datasheet Preview — Preview of IRM-2633VF4 PDF

Datasheet Details

Part number:

IRM-2633VF4

Manufacturer:

Everlight Electronics

File Size:

291.13 KB

Description:

Infrared remote-control receiver.
