MP7636A, 15 V CMOS Microprocessor Compatible Double-Buffered Multiplying 16-Bit Digital-to-Analog Converter

.
The MP7636A is manufactured using advanced thin film resistors on a double metal CMOS process.

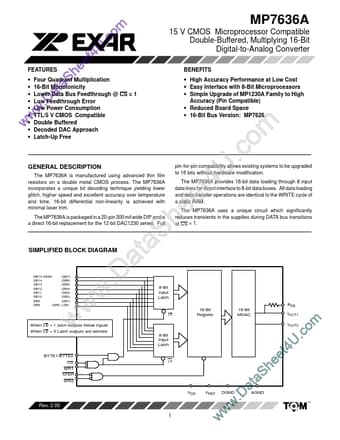

datasheet Preview Page 1 from Datasheet4u.com

MP7636A_ExarCorporation.pdf

MP7636A Datasheet Preview — Preview of MP7636A PDF

Datasheet Details

Part number:

MP7636A

Manufacturer:

Exar Corporation

File Size:

92.62 KB

Description:

15 V CMOS Microprocessor Compatible Double-Buffered Multiplying 16-Bit Digital-to-Analog Converter

Features

* w w Four Quadrant Multiplication 16-Bit Monotonicity Lower Data Bus Feedthrough @ CS = 1 Low Feedthrough Error Low Power Consumption TTL/5 V CMOS Compatible Double Buffered Decoded DAC Approach Latch-Up Free

Applications

* Information Rev. 2.00 4 MP7636A TIMING DIAGRAM VIH CS, BYTE1/BYTE2 VIL tW 50% VIL VIH DATA BITS VIL tS IOUT1, IOUT2 SETTLED TO +0.01% 50% tDS 50% 50% tCS tCH 50% VIH WR tDH 50% DEFINITION OF CONTROL SIGNALS: CS: WR1: Chip Select (Active low). It will enable WR1. Write 1 (Active low) The WR1 is u
