XR16C2850 - 2.97V TO 5.5V DUAL UART

XR16C2850 Description

รกรง APRIL 2002 XR16C2850 3.3V AND 5V DUART WITH 128-BYTE FIFO REV.2.0.0 GENERAL .
The XR16C28501 (2850) is an enhanced dual universal asynchronous receiver and transmitter (UART).

XR16C2850 Features

* include 128 bytes of TX and RX FIFOs, programmable TX and RX FIFO trigger level, FIFO level counters, automatic (RTS/CTS) hardware and (Xon/Xoff) software flow control, automatic RS485 half duplex direction control output and data rates up to 6.25 Mbps at 5V and 8X sampling clock. Onboard status reg

XR16C2850 Applications

* Portable Appliances
* Telecommunication Network Routers
* Ethernet Network Routers
* Cellular Data Devices

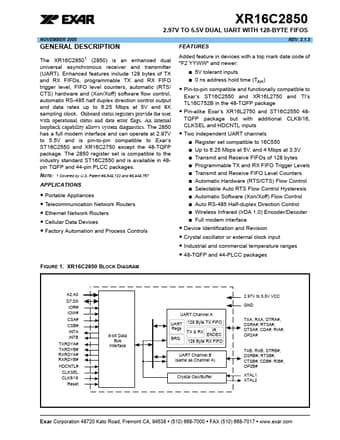

* Factory Automation and Process Controls FIGURE 1. XR16C2850 BLOCK DIAGRAM A2:A0 D7:D0 IOR# IOW# CSA# CSB# INTA INTB TXRDYA# TXRDYB# RXRDYA# RXRDYB#
