XR16M564 - 1.62V TO 3.63V Quad UART

Product Overview

Sipex Corporation

Datasheet Details

Part number	XR16M564
Manufacturer	Sipex Corporation
File Size	1.71 MB
Description	1.62V TO 3.63V Quad UART
Datasheet	XR16M564 Datasheet

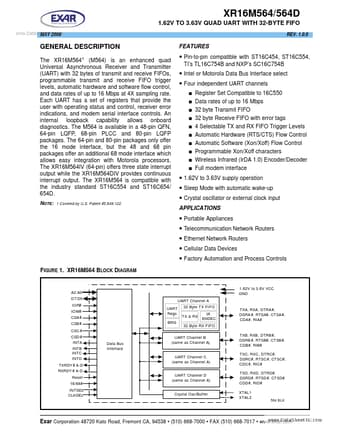

Additional preview pages of the XR16M564 datasheet.

Product details

Description

The XR16M5641 (M564) is an enhanced quad Universal Asynchronous Receiver and Transmitter (UART) with 32 bytes of transmit and receive FIFOs, programmable transmit and receive FIFO trigger levels, automatic hardware and software flow control, and data rates of up to 16 Mbps at 4X sampling rate.

Features

Pin-to-pin compatible with ST16C454, ST16C554, TI’s TL16C754B and NXP’s SC16C754B.
Intel or Motorola Data Bus Interface select.
Four independent UART channels.
Register Set Compatible to 16C550 Data rates of up to 16 Mbps 32 byte Transmit FIFO 32 byte Receive FIFO with error tags 4 Selectable TX and RX FIFO Trigger Levels Automatic Hardware (RTS/CTS) Flow Control Automatic Software (Xon/Xoff) Flow Control P.
