XR16M2551

HIGH PERFORMANCE LOW VOLTAGE DUART

XR16M2551 Features

* of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. An internal loopback capability allows system diagnostics. Independent programmable fractional baud rate generators are provided in each channel to select data rates up to 16 Mbp

XR16M2551 General Description

The XR16M25511 (M2551) is a high performance dual universal asynchronous receiver and transmitter (UART) with 16 byte TX and RX FIFOs. The device operates from 1.62 to 3.63 volts and is pin-to-pin compatible to the XR16L2551 and XR16V2551. The M2551 includes 2 additional capabilities over the XR16M2.

XR16M2551 Datasheet (3.05 MB)

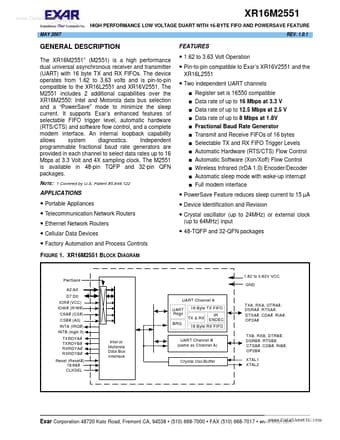

Preview of XR16M2551 PDF

Datasheet Details

Part number:

XR16M2551

Manufacturer:

Exar Corporation

File Size:

3.05 MB

Description:

High performance low voltage duart.
