XR16M564D, XR16M564 Datasheet - Sipex Corporation

XR16M564D 1.62V TO 3.63V Quad UART

The XR16M5641 (M564) is an enhanced quad Universal Asynchronous Receiver and Transmitter (UART) with 32 bytes of transmit and receive FIFOs, programmable transmit and receive FIFO trigger levels, automatic hardware and software flow control, and data rates of up to 16 Mbps at 4X sampling rate. Each .

XR16M564D Features

* Pin-to-pin compatible with ST16C454, ST16C554, TI’s TL16C754B and NXP’s SC16C754B

* Intel or Motorola Data Bus Interface select

* Four independent UART channels

* Register Set Compatible to 16C550 Data rates of up

XR16M564_SipexCorporation.pdf

This datasheet PDF includes multiple part numbers: XR16M564D, XR16M564. Please refer to the document for exact specifications by model.

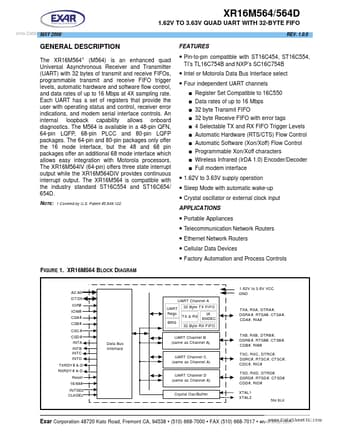

XR16M564D Datasheet Preview Page 2 XR16M564D Datasheet Preview Page 3

Datasheet Details

Part number:

XR16M564D, XR16M564

Manufacturer:

Sipex Corporation

File Size:

1.71 MB

Description:

1.62v to 3.63v quad uart.

Note:

This datasheet PDF includes multiple part numbers: XR16M564D, XR16M564.
Please refer to the document for exact specifications by model.
