www.DataSheet4U.com JUNE 2007 PRELIMINARY XR16M2750 REV.P1.0.0 HIGH PERFORMANCE DUART WITH 64-BYTE FIFO GENERAL .
The XR16M27501 (M2750) is a high performance dual universal asynchronous receiver and transmitter (UART) with 64 byte TX and RX FIFOs.

📥 Download Datasheet

Preview of XR16M2750 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XR16M2750
Manufacturer
Exar Corporation
File Size
375.00 KB
Datasheet
XR16M2750_ExarCorporation.pdf
Description
HIGH PERFORMANCE DUART

Features

* It supports the Exar’s enhanced features of programmable FIFO trigger level and FIFO level counters, automatic hardware (RTS/CTS) and software flow control, automatic RS-485 half duplex direction control output and a complete modem interface. Onboard registers provide the user with operational stat

Applications

* Portable Appliances
* Telecommunication Network Routers
* Ethernet Network Routers
* Cellular Data Devices

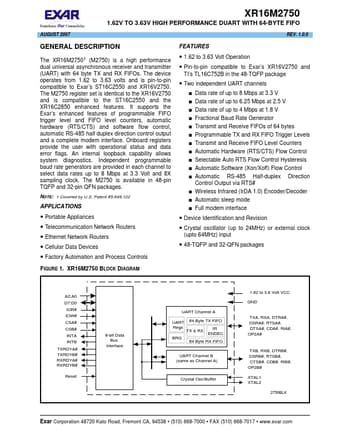

* Factory Automation and Process Controls FIGURE 1. XR16M2750 BLOCK DIAGRAM
* Device Identification and Revision
