XR16M554 - 1.62V To 3.63V Quad UART

Product Overview

Sipex Corporation

Datasheet Details

Part number	XR16M554
Manufacturer	Sipex Corporation
File Size	1.36 MB
Description	1.62V To 3.63V Quad UART
Datasheet	XR16M554 Datasheet

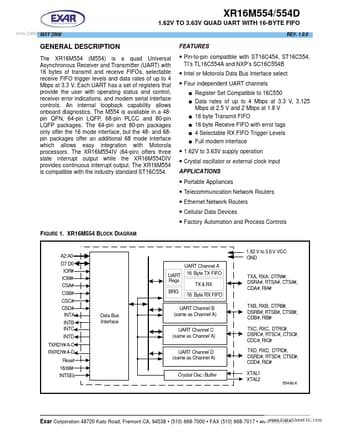

Additional preview pages of the XR16M554 datasheet.

Product details

Description

The XR16M554 (M554) is a quad Universal Asynchronous Receiver and Transmitter (UART) with 16 bytes of transmit and receive FIFOs, selectable receive FIFO trigger levels and data rates of up to 4 Mbps at 3.3 V.

Features

Pin-to-pin compatible with ST16C454, ST16C554, TI’s TL16C554A and NXP’s SC16C554B.
Intel or Motorola Data Bus Interface select.
Four independent UART channels.
Register Set Compatible to 16C550 Data rates of up to 4 Mbps at 3.3 V, 3.125 Mbps at 2.5 V and 2 Mbps at 1.8 V 16 byte Transmit FIFO 16 byte Receive FIFO with error tags 4 Selectable RX FIFO Trigger Levels Full modem interface.
1.62V to 3.63V supply operation.
