XR-13600

Dual Operational Transconductance Amplifier

XR-13600 Features

* Direct Replacement for LM-13600 and LM-13600 A Transconductance Adjustable Over 4 Decades Excellent Transconductance-Control Linearity Uncommitted Darlington Output Buffers On-Chip Predistortion Diodes Excellent Matching Between Amplifiers Wide Supply Range: ± 2V to ± 18V OUTPUT BUFFER INPUT BUFFER

XR-13600 General Description

The XR-13600 is a dual operational transconductance (Norton) amplifier with predistortion diodes and noncommitted Darlington buffer outputs. The device is especially suitable for electronically controllable gain amplifiers, controlled frequency filters, an other applications requiring current or vol.

XR-13600 Datasheet (573.92 KB)

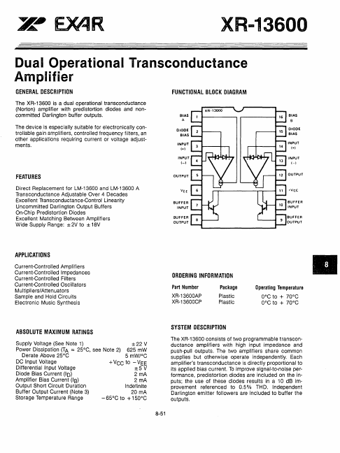

Preview of XR-13600 PDF

Datasheet Details

Part number:

XR-13600

Manufacturer:

Exar

File Size:

573.92 KB

Description:

Dual operational transconductance amplifier.
