EM1104

Low Noise LDO Regulator

EM1104 Features

* include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM1104 is available in SOT-23-5 package. Ordering Information Part Number EM1104J-XXX Features Package SOT-23-5L XXX : output Voltage 150 : 1.50V 180 : 1.80V : : 250 : 2.50V 300 : 3.00V 330

EM1104 General Description

The EM1104 performs ultra- low drop voltage, high power supply rejection ratio (PSRR), fast response, low noise linear regulator, and designed to continuously deliver up to 600mA output current. The EM1104 offers a range of 1.5V to 3.3V fixed output, and high output accuracy to 2%. No by-pass capac.

EM1104 Datasheet (664.11 KB)

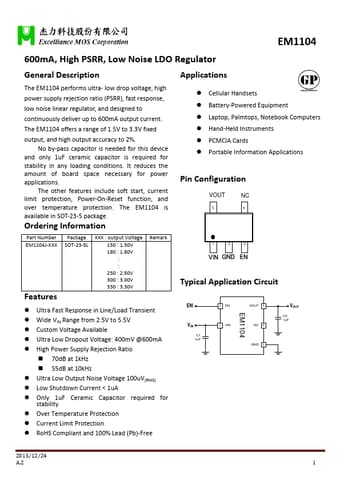

Preview of EM1104 PDF

Datasheet Details

Part number:

EM1104

Manufacturer:

Excelliance MOS

File Size:

664.11 KB

Description:

Low noise ldo regulator.
