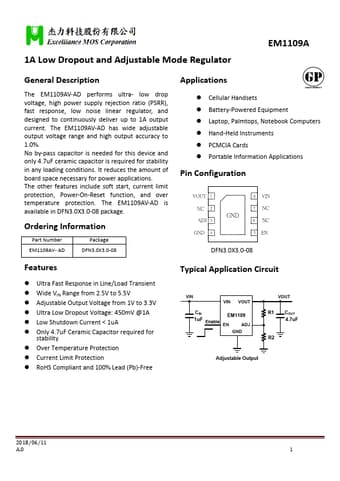

EM1109A 1A Low Dropout and Adjustable Mode Regulator

The EM1109AV-AD performs ultra- low drop voltage, high power supply rejection ratio (PSRR), fast response, low noise linear regulator, and designed to continuously deliver up to 1A output current. The EM1109AV-AD has wide adjustable output voltage range and high output accuracy to 1.0%. No by-pass .

EM1109A Features

* include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM1109AV-AD is available in DFN3.0X3.0-08 package. Ordering Information Part Number EM1109AV- AD Package DFN3.0X3.0-08 Applications Cellular Handsets Battery-Powered Equipment Laptop, Palm
