EM1109BV

1A Low Dropout and Adjustable Mode Regulator

EM1109BV Features

* include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM1109BV is available in DFN3X3-08L package. Ordering Information Part Number Package EM1109BV-XX DFN3X3-08L XX: Output Voltage AJ: Adjust 10: 1.00V 12: 1.20V 15: 1.50V 18: 1.80V 25: 2.50

EM1109BV General Description

The EM1109BV performs ultra- low drop voltage, high power supply rejection ratio (PSRR), fast response, low noise linear regulator, and designed to continuously deliver up to 1A output current. The EM1109BV has wide adjustable output voltage range and high output accuracy to 1.0%. No by-pass capaci.

EM1109BV Datasheet (1.51 MB)

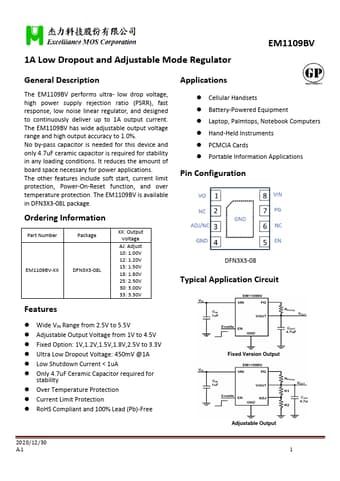

Preview of EM1109BV PDF

Datasheet Details

Part number:

EM1109BV

Manufacturer:

Excelliance MOS

File Size:

1.51 MB

Description:

1a low dropout and adjustable mode regulator.
