EM1109

1A Low Dropout Adjustable and Fixed Mode Regulator

EM1109 Features

* include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM1109 is available in DFN3X3-08L package. Ordering Information Part Number Package EM1109V-XX DFN3X3-08L XX: Output Voltage AD: Adjust 10: 1.0V 12: 1.2V 15: 1.5V 18: 1.8V 25: 2.5V 30: 3

EM1109 General Description

The EM1109 performs ultra- low drop voltage, high power supply rejection ratio (PSRR), fast response, low noise linear regulator, and designed to continuously deliver up to 1A output current. The EM1109 has wide adjustable output voltage range and high output accuracy to 1.5%. No by-pass capacitor .

EM1109 Datasheet (1.09 MB)

Preview of EM1109 PDF

Datasheet Details

Part number:

EM1109

Manufacturer:

Excelliance MOS

File Size:

1.09 MB

Description:

1a low dropout adjustable and fixed mode regulator.

📁 Related Datasheet

EM1101 - LDO Regulator (Excelliance MOS)
EM1101 300mA High PSRR Low Noise, Adjustable LDO Regulator General Description The EM1101 performs ultra low drop voltage, high power supply rejecti.

EM1103 - LDO Regulator (Excelliance MOS)
EM1103 300mA, High PSRR, Low Noise LDO Regulator General Description The EM1103 performs ultra low drop voltage, high power supply rejection ratio .

EM1104 - Low Noise LDO Regulator (Excelliance MOS)
EM1104 600mA, High PSRR, Low Noise LDO Regulator General Description The EM1104 performs ultra- low drop voltage, high power supply rejection ratio.

EM1105 - LDO Regulator (Excelliance MOS)
EM1105 300mA, High PSRR, Low Noise, Adjustable LDO Regulator General Description The EM1105 performs ultra low drop voltage, high power supply rejec.

EM1106 - LDO (Excelliance MOS)
600mA High PSRR Low Noise LDO EM1106 General Description The EM1106 performs ultra low drop voltage, high power supply rejection ratio (PSRR), fast.

EM1109A - 1A Low Dropout and Adjustable Mode Regulator (Excelliance MOS)
1A Low Dropout and Adjustable Mode Regulator EM1109A General Description The EM1109AV-AD performs ultra- low drop voltage, high power supply reject.

EM1109BV - 1A Low Dropout and Adjustable Mode Regulator (Excelliance MOS)
1A Low Dropout and Adjustable Mode Regulator EM1109BV General Description The EM1109BV performs ultra- low drop voltage, high power supply rejectio.

EM11 - Tube (Tesla)
.

TAGS

EM1109 Low Dropout Adjustable and Fixed Mode Regulator Excelliance MOS

Image Gallery

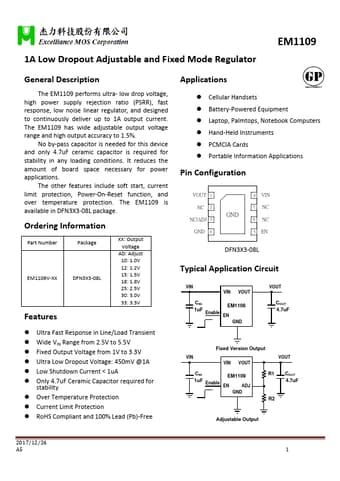

EM1109 Datasheet Preview Page 2 EM1109 Datasheet Preview Page 3
