EM8801A Datasheet - Excelliance MOS

EM8801A - Current-Mode Controller

EM8801A is a constant off time current mode controller.

This device can operated with a fixed off time of the power switch.

The TOFF pin is provided to set the off time.

In addition, the PWMD pin enables the user to use a PWM signal to modulate the switching pattern and adjust the average luminosit

EM8801A Features

* Constant Off Time Current-Mode Control Adjustable Off Time Internal Leading Edge Blanking Internal Start Up Delay Maximum On Time Protection Over Current Protection Built-in Thermal Shutdown PFM mode operation to reduce EMI Internal / External Soft Start Function Applications

EM8801A-ExcellianceMOS.pdf

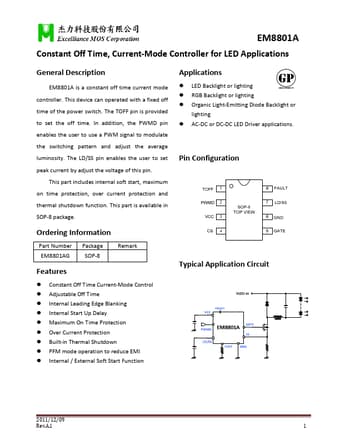

Preview of EM8801A PDF
EM8801A Datasheet Preview Page 2 EM8801A Datasheet Preview Page 3

Datasheet Details

Part number:

EM8801A

Manufacturer:

Excelliance MOS

File Size:

221.61 KB

Description:

Current-mode controller.
