XP3182 - 18V 2A Synchronous Buck Converter

FINE MADE ELECTRONICS

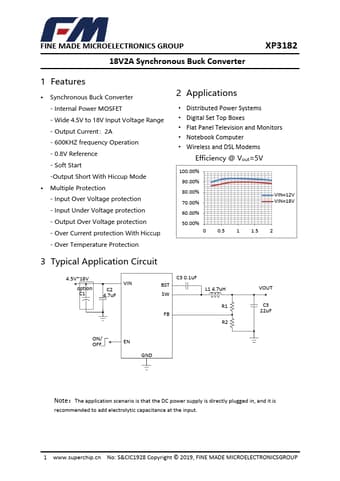

XP3182 Datasheet Preview — Preview of XP3182 PDF

Datasheet Details

Part number	XP3182
Manufacturer	FINE MADE ELECTRONICS
File Size	976.39 KB
Description	18V 2A Synchronous Buck Converter
Datasheet	XP3182-FINEMADEELECTRONICS.pdf

XP3182 Product details

Description

The XP3182B is a high frequency, synchronous buck converter with internal power MOSFET.XP3182B supports wide input voltage range: 4.5V to 18V and provides 2.0A continuous load current capability, and provide high efficiency without use of external Schottky diode.Low output voltage ripple and small external inductor and capacitor size are achieved with 600KHz switching frequency XP3182B has a variety of protection functions：Input over voltage protection, Input UVLO, Output over current protecti

Features

Synchronous Buck Converter - Internal Power MOSFET - Wide 4.5V to 18V Input Voltage Range - Output Current：2A - 600KHZ frequency Operation - 0.8V Reference - Soft Start -Output Short With Hiccup Mode.
Multiple Protection - Input Over Voltage protection - Input Under Voltage protection - Output Over Voltage protection - Over Current protection With Hiccup - Over Temperature Protection 2.
