XP3601N P-CHANNEL ENHANCEMENT MODE POWER MOSFET

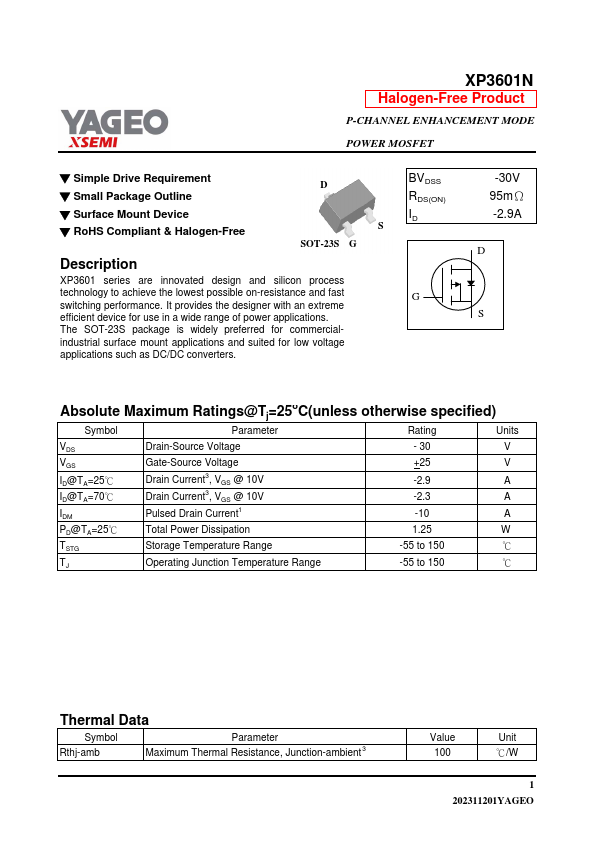

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP3601N Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Package Outline ▼ Surface Mount Device ▼ R.
XP3601 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP3601N PDF

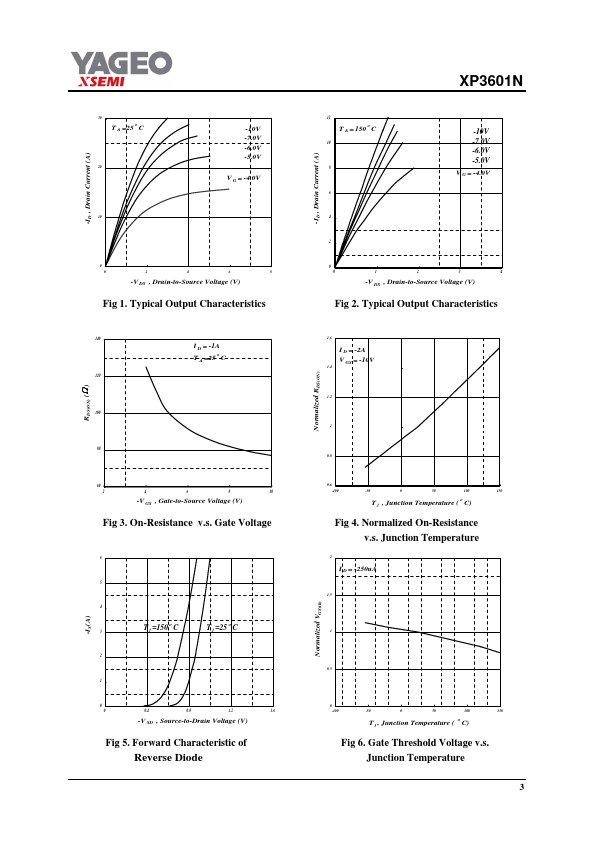

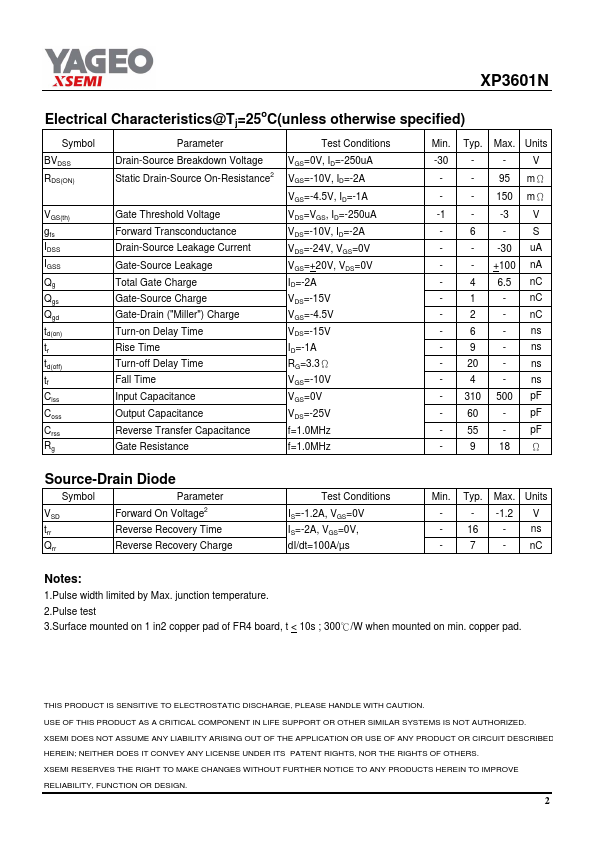

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP3601N
Manufacturer
YAGEO
File Size
150.22 KB
Datasheet
XP3601N-YAGEO.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-23S package is widely preferred for commercialindustrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID G -30V 95mΩ -2.9A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS
