XP3700Y N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3700Y Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performance .
XP3700 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

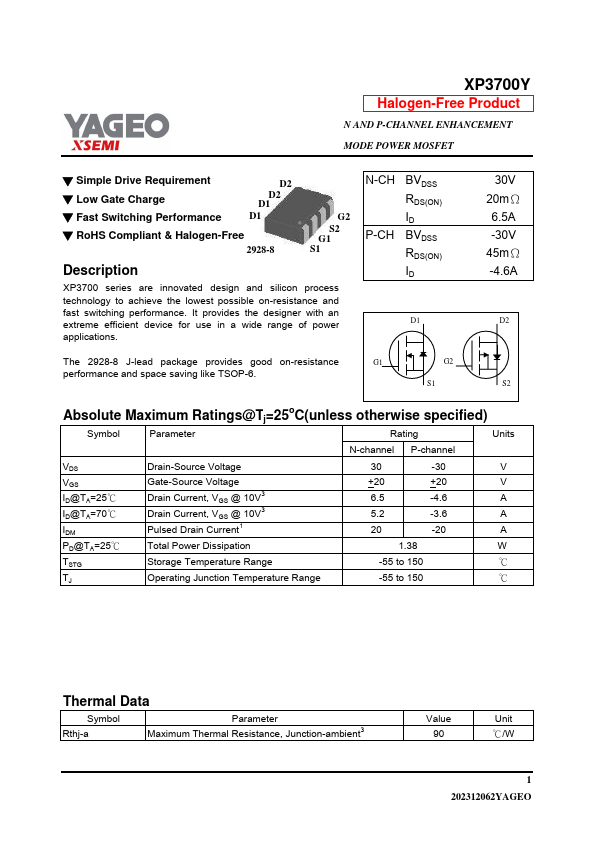

XP3700Y Datasheet Preview — Preview of XP3700Y PDF

Datasheet Specifications

Part number: XP3700Y
Manufacturer: YAGEO
File Size: 273.50 KB
Datasheet: XP3700Y-YAGEO.pdf
Description: N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 The 2928-8 J-lead package provides good on-resistance G1 performance and space saving like TSOP-6. G2 S1 30V 20mΩ 6.5A -30V 45mΩ -4.6A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units N-chan
