XP3700M, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3700M Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performance .
XP3700 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

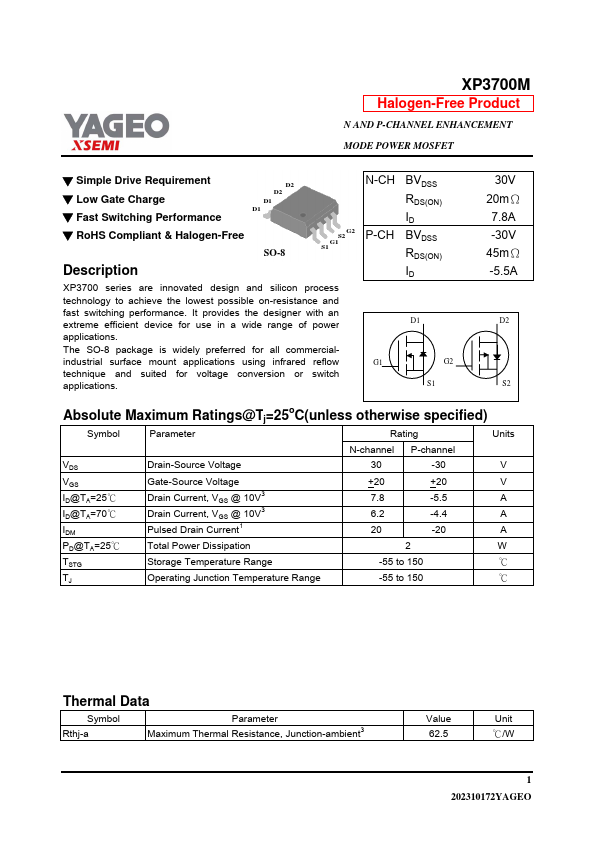

datasheet Preview Page 1 from Datasheet4u.com

XP3700M-YAGEO.pdf

XP3700M Datasheet Preview — Preview of XP3700M PDF

Datasheet Details

Part number:

XP3700M

Manufacturer:

YAGEO

File Size:

275.82 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 30V 20mΩ 7.8A -30V 45mΩ -5.5A D2 S2 Absolute Maximum Rat
