XP3702YT, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3702YT Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Good Thermal Performance D1 N-CH D2 ▼ Fast.
PMPAK® 3x3 P-CH XP3702 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching.

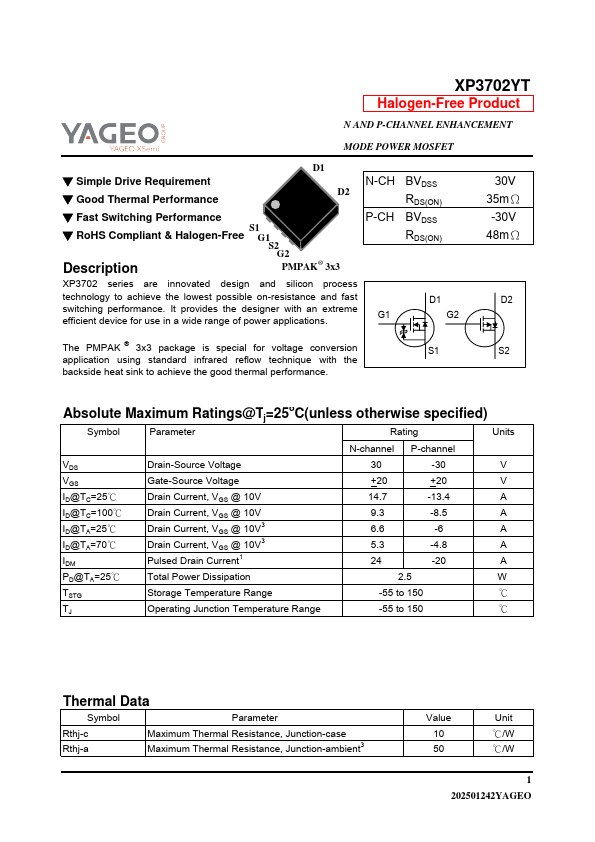

datasheet Preview Page 1 from Datasheet4u.com

XP3702YT-YAGEO.pdf

XP3702YT Datasheet Preview — Preview of XP3702YT PDF

Datasheet Details

Part number:

XP3702YT

Manufacturer:

YAGEO

File Size:

751.42 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G1 BVDSS RDS(ON) BVDSS RDS(ON) D1 1 G2 30V 35mΩ -30V 48mΩ D2 The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. S1 S2 Absolute Maximum Ratings@Tj=25oC. (unless
