XP3700YT - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

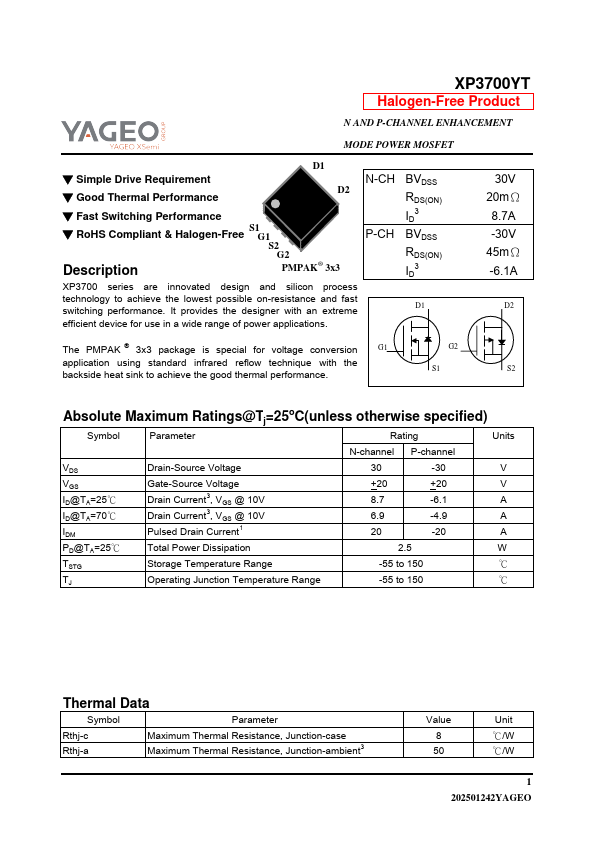

Preview of XP3700YT PDF

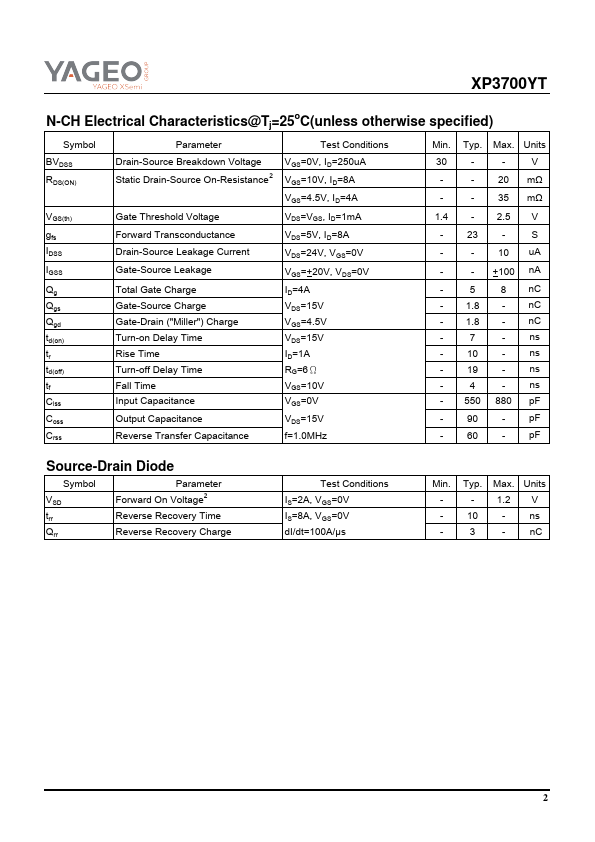

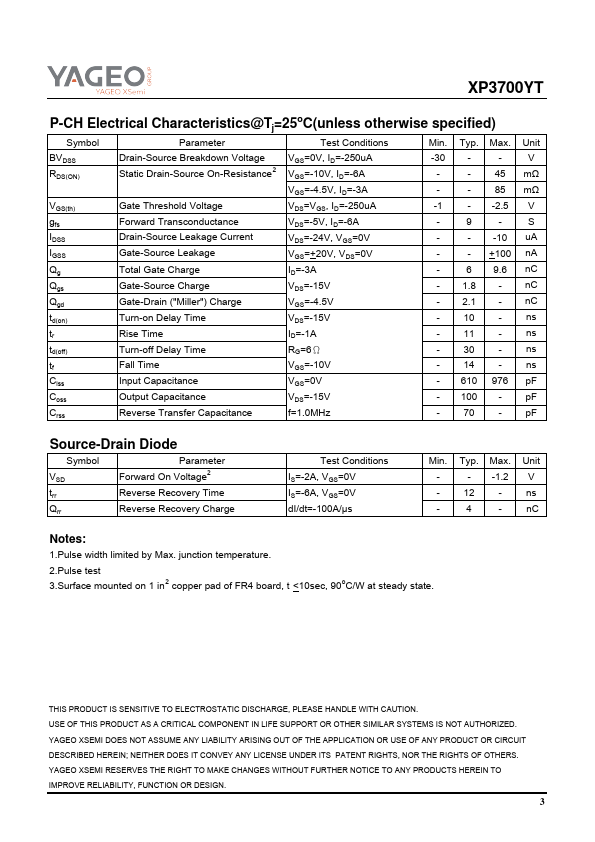

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP3700YT
Manufacturer
YAGEO
File Size
736.04 KB
Datasheet
XP3700YT-YAGEO.pdf
Description
N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3700YT Product details

Description

PMPAK® 3x3 P-CH XP3700 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.BVDSS RDS(ON) ID3 BVDSS RDS(ON) ID3 D1 30V 20mΩ 8.7A -30V 45mΩ -6.1A D2 The PMPAK ® 3x3 package is special for voltage conversion G1 G2 application using standard infrared reflow technique with the backside heat sink to achieve
