XP3700MT - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

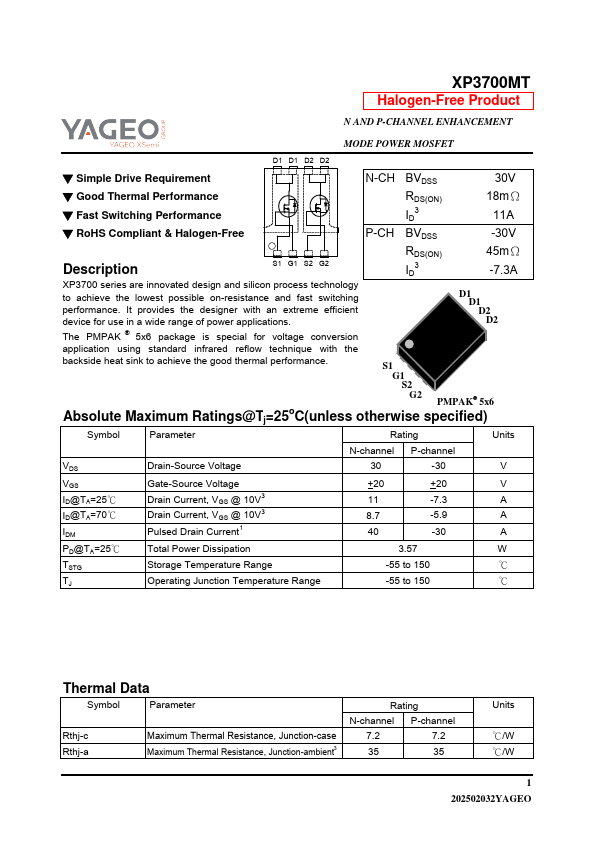

Preview of XP3700MT PDF

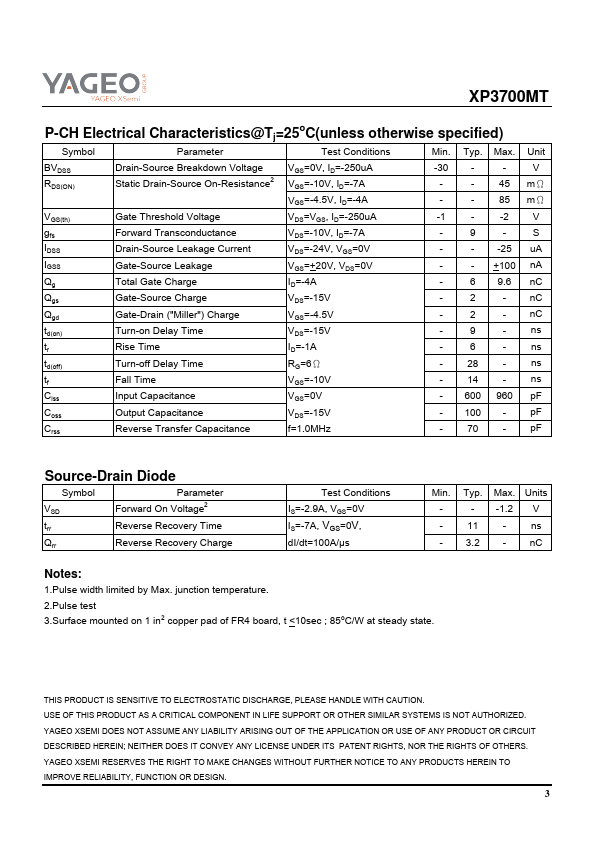

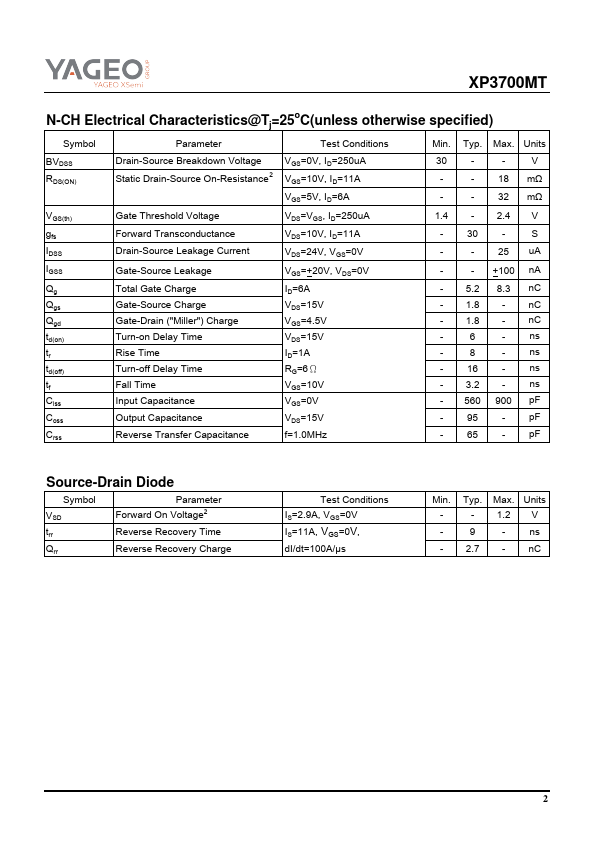

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP3700MT
Manufacturer
YAGEO
File Size
732.95 KB
Datasheet
XP3700MT-YAGEO.pdf
Description
N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP3700MT Product details

Description

S1 G1 S2 G2 XP3700 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an extreme efficient device for use in a wide range of power applications.The PMPAK ® 5x6 package is special for voltage conversion RDS(ON) ID3 45mΩ -7.3A D1 D1 D2 D2 application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance.S1 G1 S2 G2 PMP
