FNK12N12D - N-Channel Power MOSFET

FNK

📥 Download Datasheet

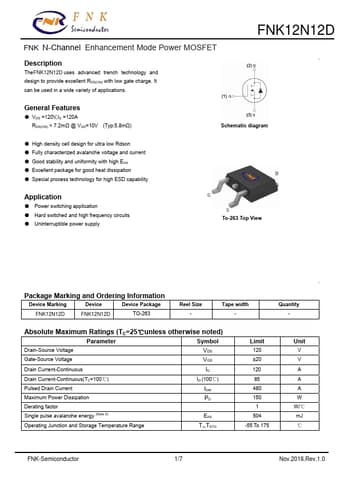

FNK12N12D Datasheet Preview — Preview of FNK12N12D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FNK12N12D
Manufacturer	FNK
File Size	1.44 MB
Description	N-Channel Power MOSFET
Datasheet	FNK12N12D-FNK.pdf

FNK12N12D Product details

Description

TheFNK12N12D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =120V,ID =120A RDS(ON) < 7.2mΩ @ VGS=10V (Typ:5.8mΩ) Schematic diagram.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
