FNK3205 Datasheet, Mosfet, FNK

FNK3205 Features

  • Mosfet
  • VDS =55V,ID =120A RDS(ON) < 5.5mΩ @ VGS=10V (Typ:4.1mΩ)
  • High density cell design for ultra low Rdson
  • Fully characterized avalanche voltage and current

PDF File Details

Part number:

FNK3205

Manufacturer:

FNK

File Size:

594.93kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FNK3205 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide va

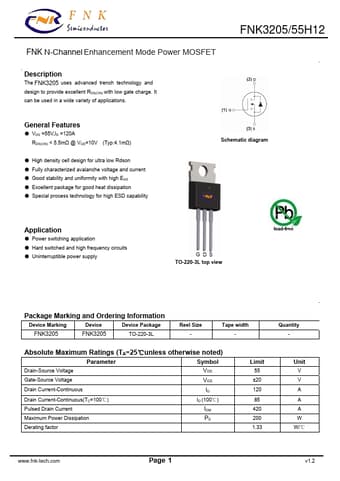

Datasheet Preview: FNK3205 📥 Download PDF (594.93kb)
Page 2 of FNK3205 Page 3 of FNK3205

FNK3205 Application

  • Applications FNK3205/55H12 General Features
  • VDS =55V,ID =120A RDS(ON) < 5.5mΩ @ VGS=10V (Typ:4.1mΩ)
  • High density cell desig
