FNK55H12 Datasheet, Mosfet, FNK

FNK55H12 Features

• Mosfet
• VDS =55V,ID =120A RDS(ON) < 5.5mΩ @ VGS=10V (Typ:4.1mΩ)
• High density cell design for ultra low Rdson
• Fully characterized avalanche voltage and current

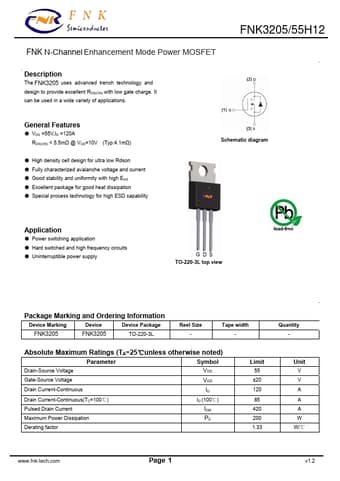

PDF File Details

Part number:

FNK55H12

Manufacturer:

FNK

File Size:

594.93kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FNK3205 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide va

FNK55H12 Application

• Applications FNK3205/55H12 General Features
• VDS =55V,ID =120A RDS(ON) < 5.5mΩ @ VGS=10V (Typ:4.1mΩ)
• High density cell desig
