2SC2230A, 2SC2230 (2SC2230/A) SILICON NPN TRANSISTOR

2SC2230A Description

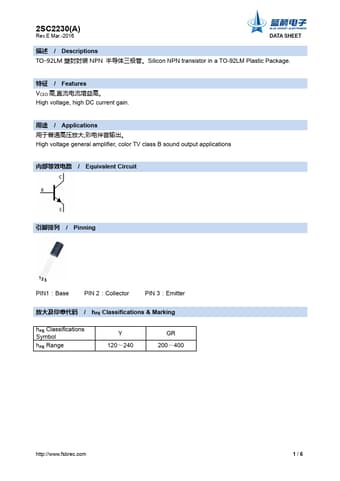

2SC2230(A) Rev.E Mar.-2016 DATA SHEET / .
TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package.

2SC2230A Applications

* ,。 High voltage general amplifier, color TV class B sound output applications / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Y 120～240 GR 200～400 http://www. fsbrec. com 1/6 2SC2230(A) Rev.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC2230A, 2SC2230. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2230A, 2SC2230
Manufacturer
FOSHAN BLUE ROCKET
File Size
855.72 KB
Datasheet
2SC2230-FOSHANBLUEROCKET.pdf
Description
(2SC2230/A) SILICON NPN TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: 2SC2230A, 2SC2230.
Please refer to the document for exact specifications by model.
