2SC2216

SILICON NPN TRANSISTOR

2SC2216 Features

* High gain, good hFE linearity. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC IE PC Tj Tstg 50 45 4.0 50 -50 300 150 -55~150 V V V mA mA mW ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCEO ICBO IEBO hFE VCE(sat)

2SC2216 Datasheet (216.49 KB)

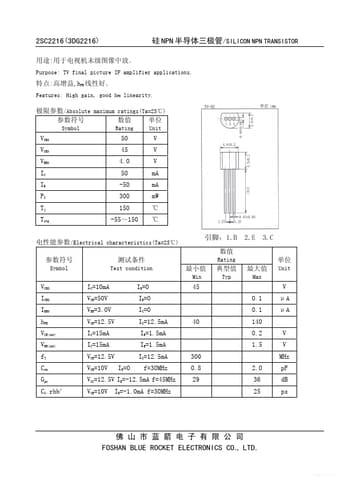

Preview of 2SC2216 PDF

Datasheet Details

Part number:

2SC2216

Manufacturer:

FOSHAN BLUE ROCKET

File Size:

216.49 KB

Description:

Silicon npn transistor.
