2SC2230 Datasheet, Transistor, FOSHAN BLUE ROCKET

2SC2230 Features

• Transistor VCEO ,。 High voltage, high DC current gain. / Applications ,。 High voltage general amplifier, color TV class B sound output applications / Equivalent Circuit / Pinning 123 PIN1

PDF File Details

Part number:

2SC2230

Manufacturer:

FOSHAN BLUE ROCKET

File Size:

855.72kb

Download:

📄 Datasheet

Description:

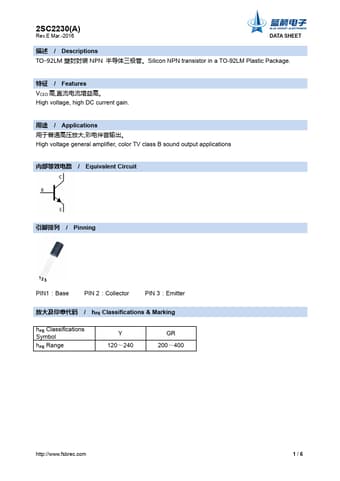

(2sc2230/a) silicon npn transistor. TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package. / Features VCEO ,。 High voltage, high DC current gain. / Ap

2SC2230 Application

• Applications ,。 High voltage general amplifier, color TV class B sound output applications / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2
