FSP3129

WIDE INPUT 2A STEP DOWN CONVERTER

FSP3129 Features

* z z z z z z z z z z z 2A Output Current Up to 95% Efficiency Up to 30V Input Range 6µA Shutdown Supply Current 400kHz Switching Frequency Adjustable Output Voltage Cycle-by-Cycle Current Limit Protection Thermal Shutdown Protection Frequency Fold Back at Short Circuit Stability with Wide Range of Ca

FSP3129 General Description

The FSP3129 is a current-mode step-down DC/DC converter that generates up to 2A output current at 400kHz switching frequency. The device can operate with input voltage up to 30V. Consuming only 6µA in shutdown mode, the FSP3129 is highly efficient with peak efficiency at 95% when in operation. Prote.

FSP3129 Datasheet (397.36 KB)

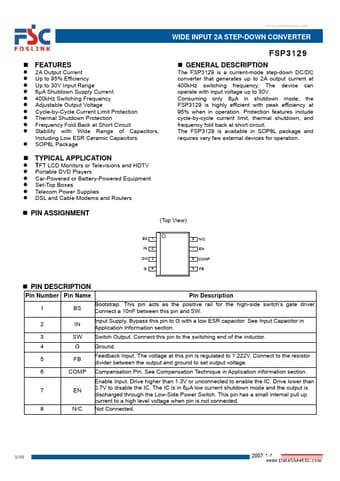

Preview of FSP3129 PDF

Datasheet Details

Part number:

FSP3129

Manufacturer:

FOSLINK SEMICONDUCTOR

File Size:

397.36 KB

Description:

Wide input 2a step down converter.
