1N5821 Datasheet - Fairchild Semiconductor

1N5821, 3.0 Ampere Schottky Barrier Rectifiers

1N5820-1N5822 1N5820 - 1N5822 .

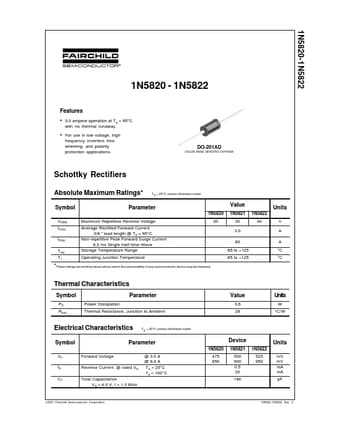

datasheet Preview Page 1 from Datasheet4u.com

1N5821_FairchildSemiconductor.pdf

Preview of 1N5821 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

1N5821

Manufacturer:

Fairchild Semiconductor

File Size:

40.41 KB

Description:

3.0 Ampere Schottky Barrier Rectifiers

Features

* 3.0 ampere operation at TA = 95°C with no thermal runaway.

Applications

* DO-201AD COLOR BAND DENOTES CATHODE Schottky Rectifiers Absolute Maximum Ratings
* TA = 25°C unless otherwise noted Symbol Parameter Value 1N5820 1N5821 1N5822 VRRM IF(AV) IFSM Tstg TJ Maximum Repetitive Reverse Voltage Average Rectified Forward Current 3/8 " lead length @ TA = 95°C Non-
