1N5822 - 3.0 Ampere Schottky Barrier Rectifiers

Name: 1N5822
SKU: 1N5822-98563

Fairchild Semiconductor

The 1N5822 by Fairchild Semiconductor is a 3.0 Ampere Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	1N5822
Manufacturer	Fairchild Semiconductor
File Size	40.41 KB
Description	3.0 Ampere Schottky Barrier Rectifiers
Datasheet	1N5822_FairchildSemiconductor.pdf

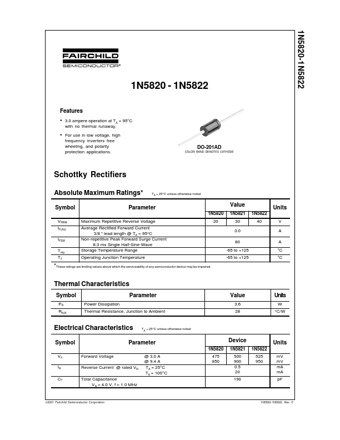

Additional preview pages of the 1N5822 datasheet.

3.0 ampere operation at TA = 95°C with no thermal runaway.
For use in low voltage, high frequency inverters free wheeling, and polarity protection.
