2N3392 Datasheet - Fairchild Semiconductor

2N3392 NPN General Purpose Amplifier

2N3390 / 2N3391 / 2N3391A / 2N3392 / 2N3393 Discrete POWER & Signal Technologies 2N3390 2N3391 2N3391A 2N3392 2N3393 B C TO-92 E NPN General Purpose Amplifier This device is designed for use as general purpose amplifiers and switches requiring collector currents to 300 mA. Sourced from Process 10. See PN100A for characteristics. Absolute Maximum Ratings Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless other.

2N3392_FairchildSemiconductor.pdf

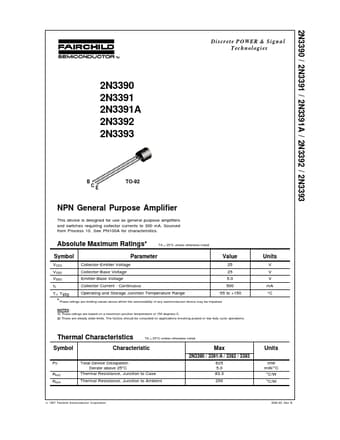

Preview of 2N3392 PDF
2N3392 Datasheet Preview Page 2

Datasheet Details

Part number:

2N3392

Manufacturer:

Fairchild Semiconductor

File Size:

25.66 KB

Description:

Npn general purpose amplifier.
