5N60C - 600V N-Channel MOSFET

Datasheet Summary

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

Features

  • 4.5A, 600V, RDS(on) = 2.5Ω @VGS = 10 V.
  • Low gate charge ( typical 15 nC).
  • Low Crss ( typical 6.5 pF).
  • Fast switching.
  • 100% avalanche tested.
  • Improved dv/dt capability D GS D2-PAK FQB Series GDS I2-PAK FQI Series D ! G!.
  • ◀▲.
  • ! S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain-Source Voltage Drain Current - Continuous (TC = 25°C) -.

📥 Download Datasheet

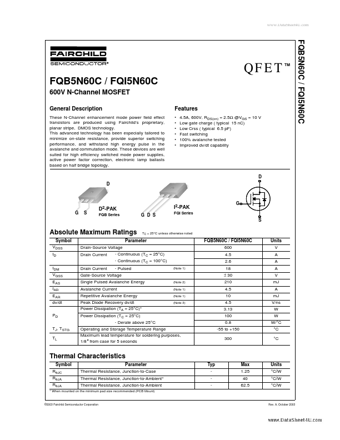

Datasheet preview – 5N60C
