5N60-CB - N-CHANNEL MOSFET

5N60-CB Description

UNISONIC TECHNOLOGIES CO., LTD 5N60-CB Preliminary 5.0A, 600V N-CHANNEL POWER MOSFET * .
The UTC 5N60-CB is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-st.

5N60-CB Features

* RDS(ON) < 2.2Ω @ VGS =10V, ID = 2.5A
* Fast Switching Capability
* Avalanche Energy Specified
* Improved dv/dt Capability, High Ruggedness
* SYMBOL Power MOSFET
* ORDERING INFORMATION Note: Ordering Number Lead Free Halogen Free 5N60L-TA3-T 5N60G-TA3-T 5N60L-TF1-T

5N60-CB Applications

* in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.

📥 Download Datasheet

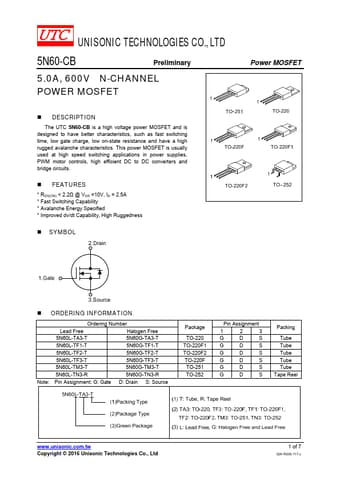

Preview of 5N60-CB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
5N60-CB
Manufacturer
UTC
File Size
229.17 KB
Datasheet
5N60-CB-UTC.pdf
Description
N-CHANNEL MOSFET
