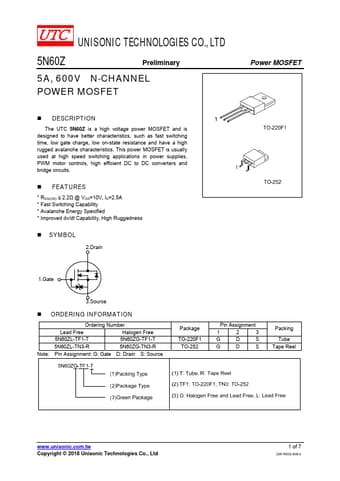

5N60Z Datasheet, Power Mosfet, UNISONIC TECHNOLOGIES

5a 600v n-channel power mosfet

UNISONIC TECHNOLOGIES

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Toshiba America Electronic Components	5N60Z	TK125N60Z1,S1F	6OOV DTMOS6 TO-247 125MOHM	DigiKey	14	1020 units	$2.09	🛒 Buy Now

📥 Download PDF (228.29 KB)

PDF File Details

Part number:

5N60Z

Manufacturer:

UNISONIC TECHNOLOGIES

File Size:

228.29 KB

Download:

📄 Download the 5N60Z Datasheet PDF

Description:

5a 600v n-channel power mosfet. The UTC 5N60Z is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche char

✔ 5N60Z Features

RDS(ON) ≤ 2.2Ω @ VGS=10V, ID=2.5A
Fast Switching Capability
Avalanche Energy Specified
Improved dv/dt Capability, High Ruggedness
SYMBOL 2.Drain Power MOSFET

✔ 5N60Z Application

in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.
