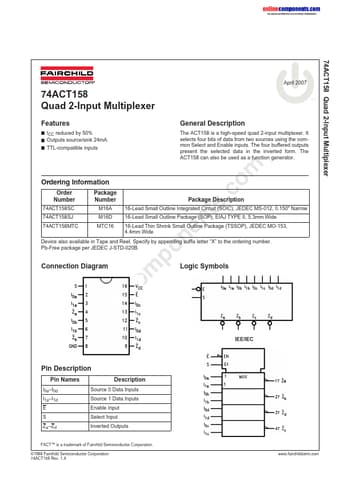

74ACT158 Datasheet, Multiplexer, Fairchild Semiconductor

74ACT158 Features

• Multiplexer
• ICC reduced by 50%
• Outputs source/sink 24mA
• TTL-compatible inputs April 2007 tm General Description The ACT158 is a high-speed quad 2-input multiplexer. I

PDF File Details

Part number:

74ACT158

Manufacturer:

Fairchild Semiconductor

File Size:

334.01kb

Download:

📄 Datasheet

Description:

Quad 2-input multiplexer. The ACT158 is a high-speed quad 2-input multiplexer. It selects four bits of data from two sources using the common Select and Enable
