74LS374, 74LS373 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

Fairchild Semiconductor

Description

DM74LS373/DM74LS374 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops March 1998 DM74LS373/DM74LS374 3-STATE Octal D-Type Trans.
These 8-bit registers feature totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads.

📥 Download Datasheet

74LS374 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LS374, 74LS373. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 74LS374, 74LS373
Manufacturer: Fairchild Semiconductor
File Size: 175.50 KB
Datasheet: 74LS373-FairchildSemiconductor.pdf
Description: 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops
Note: This datasheet PDF includes multiple part numbers: 74LS374, 74LS373.
Please refer to the document for exact specifications by model.

Features

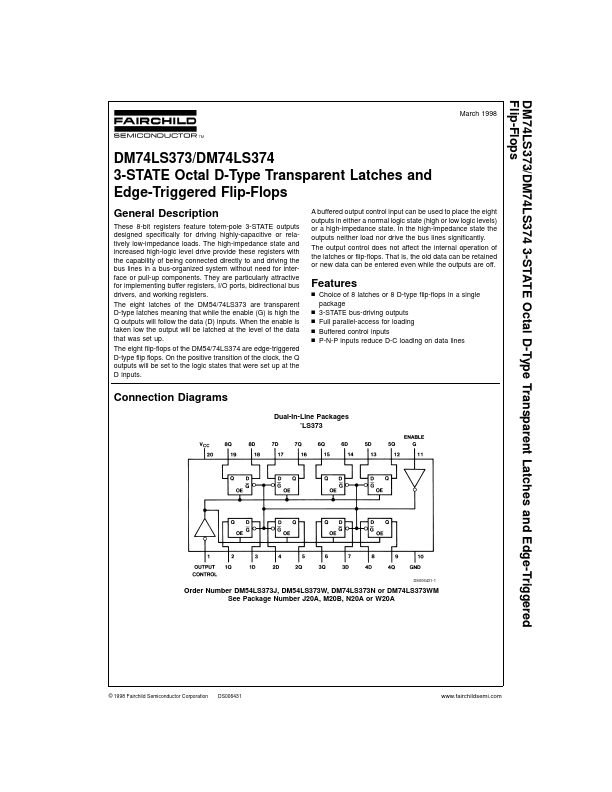

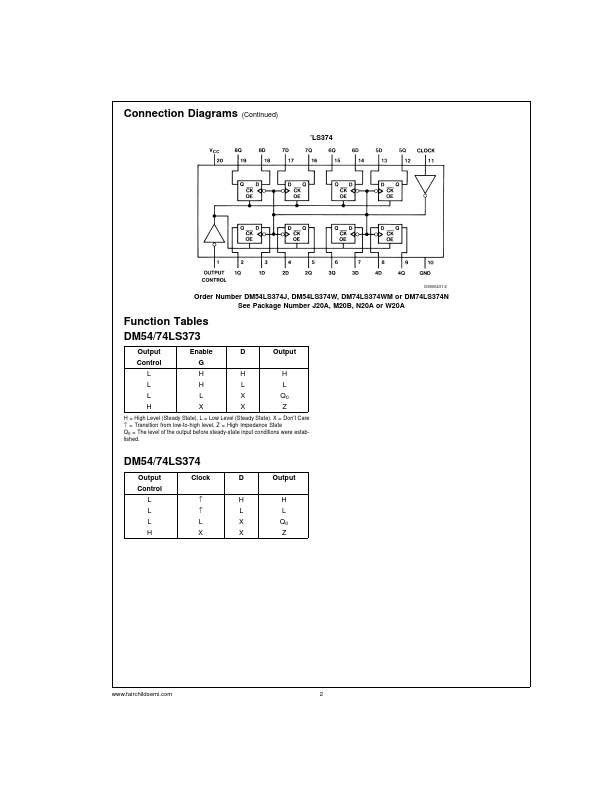

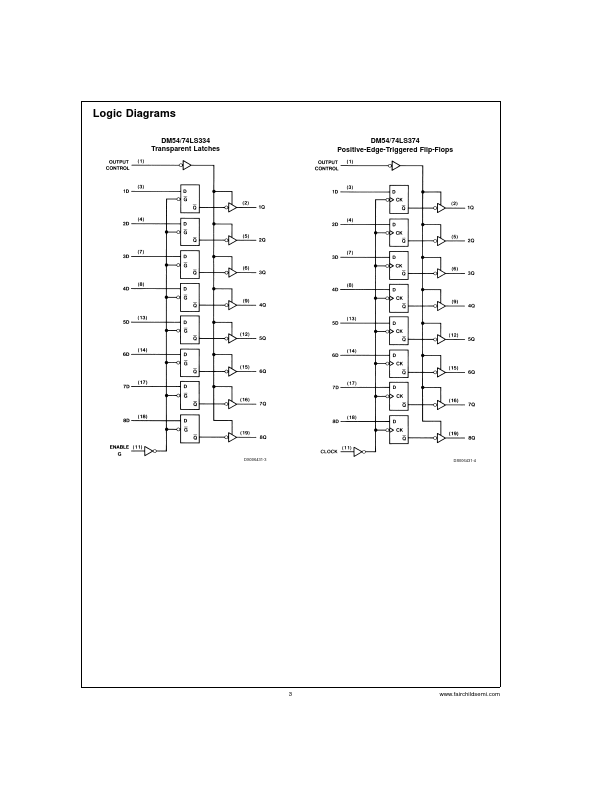

* n Choice of 8 latches or 8 D-type flip-flops in a single package n 3-STATE bus-driving outputs n Full parallel-access for loading n Buffered control inputs n P-N-P inputs reduce D-C loading on data lines Connection Diagrams Dual-In-Line Packages ’LS373 DS006431-1 Order Number DM54LS373J, DM54LS37
