BCW32 NPN General Purpose Amplifier

BCW32 Description

BCW32 BCW32 NPN General Purpose Amplifier * This device is designed for general purpose applications at collector currents to 300mA..

BCW32 Applications

* at collector currents to 300mA.
* Sourced from process 10. 3 2 1 SOT-23 Mark: D2 1. Base 2. Emitter 3. Collector Absolute Maximum Ratings
* Ta=25°C unless otherwise noted Symbol VCEO VCBO VEBO IC TJ, Tstg Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage

📥 Download Datasheet

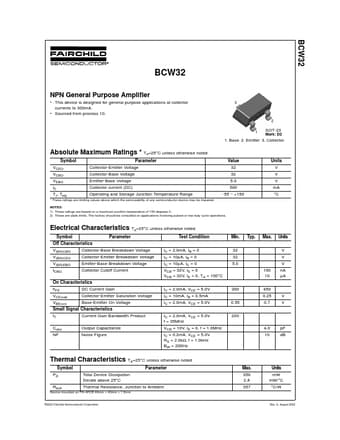

Preview of BCW32 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCW32
Manufacturer
Fairchild Semiconductor
File Size
85.90 KB
Datasheet
BCW32_FairchildSemiconductor.pdf
Description
NPN General Purpose Amplifier
