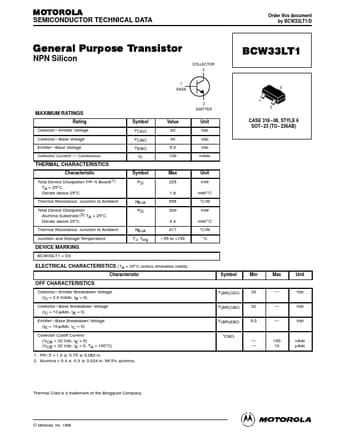

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by BCW33LT1/D
General Purpose Transistor
NPN Silicon
COLLECTOR 3 1 BASE 2 EMITTER Symbol VCEO VCBO VEBO IC Value 20 30 5.0 100 Unit Vdc Vdc Vdc mAdc
BCW33LT1
3 1 2
MAXIMUM RATINGS
Rating Collector – Emitter Voltage Collector – Base Voltage Emitter – Base Voltage Collector Current — Continuous
CASE 318 – 08, STYLE 6 SOT– 23 (TO – 236AB)
THERMAL CHARACTERISTICS
Characteristic Total Device Dissipation FR– 5 Board(1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate,(2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature Symbol PD Max 225 1.8 RqJA PD 556 300 2.
