CNY173

The CNY173 is (CNY171 - CNY174) Phototransistor Optocouplers designed by Fairchild Semiconductor.

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

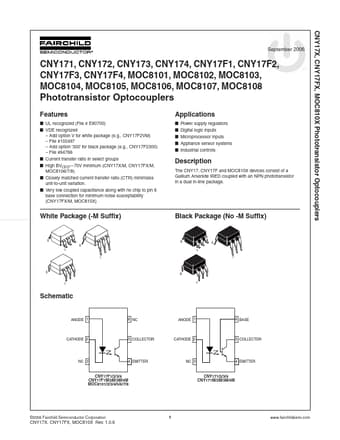

CNY173 (CNY171 - CNY174) Phototransistor Optocouplers by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – CNY173

Datasheet Details

Part number	CNY173, CNY171
Manufacturer	Fairchild Semiconductor
File Size	615.05 KB
Description	(CNY171 - CNY174) Phototransistor Optocouplers
Datasheet	CNY171_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CNY173, CNY171. Please refer to the document for exact specifications by model.
Additional preview pages of the CNY173 datasheet.

Product details

Description

The CNY17, CNY17F and MOC810X devices consist of a Gallium Arsenide IRED coupled with an NPN phototransistor in a dual in-line package.

Features

UL recognized (File # E90700).
VDE recognized.
Add option V for white package (e. g. , CNY17F2VM).
File #102497.
Add option ‘300’ for black package (e. g. , CNY17F2300).
File #94766.
Current transfer ratio in select groups.
High BVCEO.
70V minimum (CNY17X/M, CNY17FX/M, MOC8106/7/8).
Closely matched current transfer ratio (CTR) minimizes unit-to-unit variation.
Very low coupled capacitance along with no chip to pin 6 base conn.
