CNY17F2, CNY171, (CNY17F1 - CNY17F4) Phototransistor Optocouplers

CNY17X, CNY17FX, MOC810X Phototransistor Optocouplers September 2006 CNY171, CNY172, CNY173, CNY174, CNY17F1, CNY17F2, CNY17F3, CNY17F4, MOC8101, MO.
The CNY17, CNY17F and MOC810X devices consist of a Gallium Arsenide IRED coupled with an NPN phototransistor in a dual in-line package.

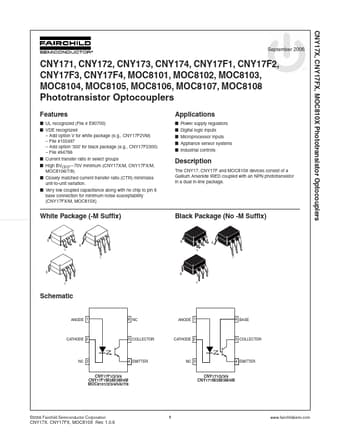

datasheet Preview Page 1 from Datasheet4u.com

CNY171_FairchildSemiconductor.pdf

CNY17F2 Datasheet Preview — This datasheet PDF includes multiple part numbers: CNY17F2, CNY171. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CNY17F2, CNY171

Manufacturer:

Fairchild Semiconductor

File Size:

615.05 KB

Description:

(CNY17F1 - CNY17F4) Phototransistor Optocouplers

Note:

This datasheet PDF includes multiple part numbers: CNY17F2, CNY171.
Please refer to the document for exact specifications by model.

Features

* UL recognized (File # E90700)
* VDE recognized
* Add option V for white package (e. g. , CNY17F2VM)
* File #102497
* Add option ‘300’ for black package (e. g. , CNY17F2300)
* File #94766
* Current transfer ratio in select groups
* High BVCEO
* 70V
